To order Tensilkut templates please call 865-982-6300



Tensilkut master templates



Tensilkut master templates are available for flat test specimens to ASTM, JIS, ISO or other domestic or international testing standards. Templates for the most common metal and non-metallic physical test specimens, including tensile, flexural, tensile-impact and compression standards, are in stock for quick delivery; others are made to order.



Product Detail



Because of the wide variety of specifications in use worldwide for testing of different materials, the Tensilkut machine does not include any standard templates. All standard templates available for the Tensilkut I and Tensilkut II machines are listed herein, and can be ordered with the Tensilkut machine, or at a later date.

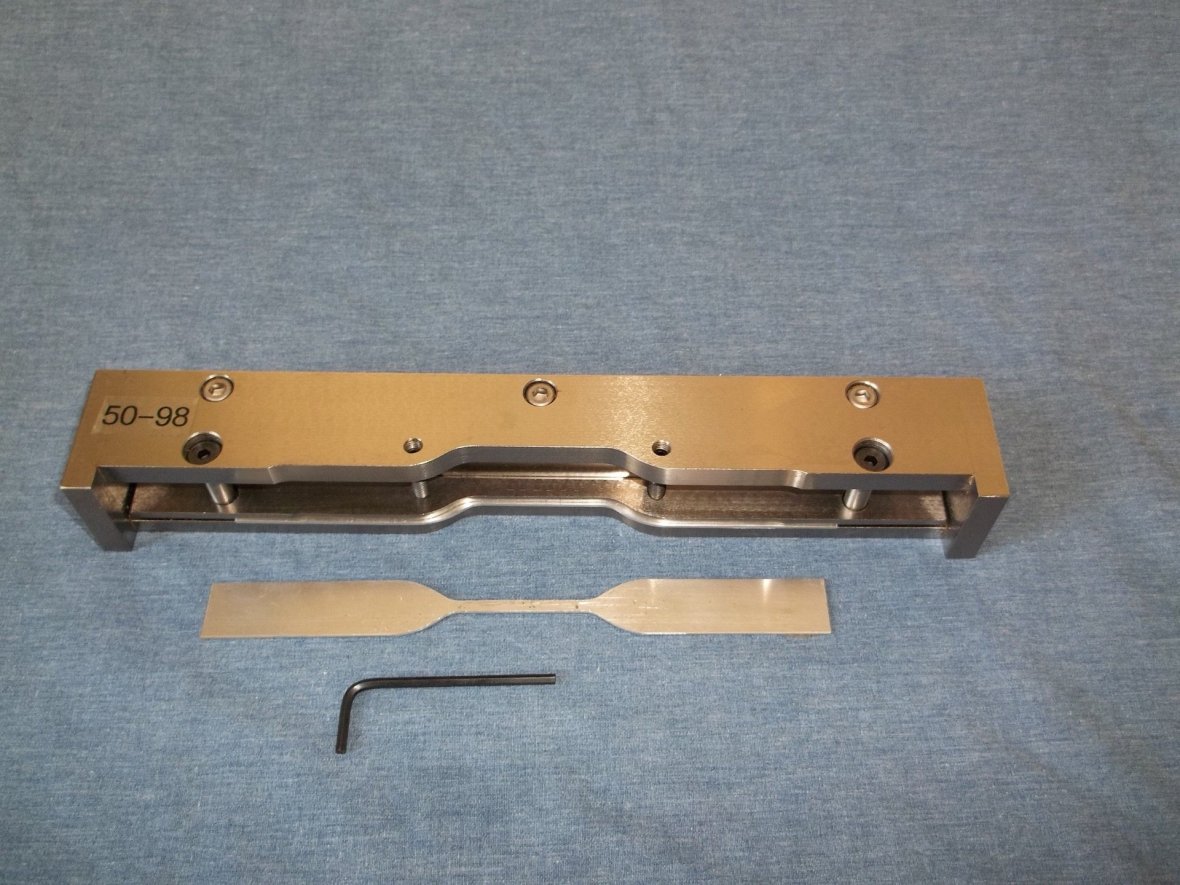

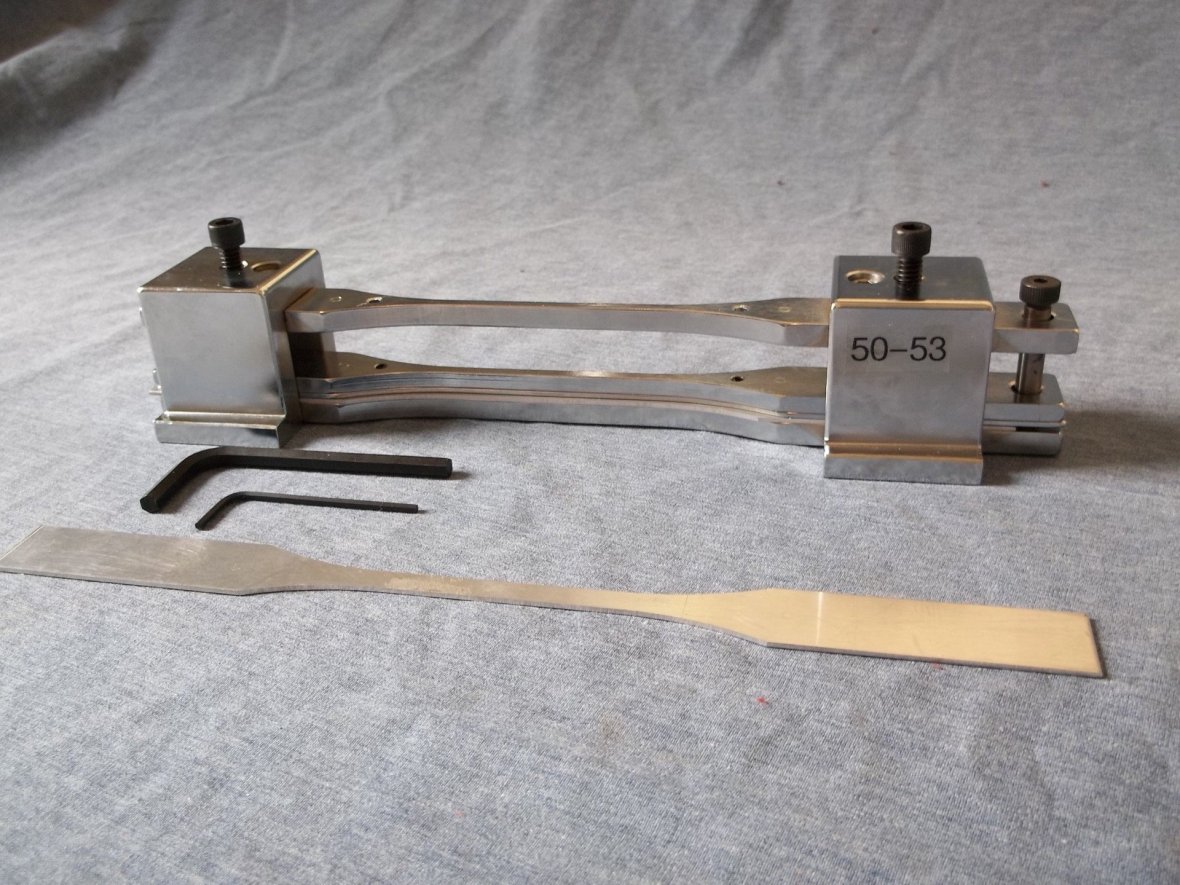

To prepare a test specimen, a rough sheared or sawn strip which is the overall width of the finished specimen is inserted into the template between the upper and lower guide bars, and is not removed from the template until both sides of the specimen are completely machined. This reduces errors caused by reversing samples, as required by conventional milling. The finished specimen will automatically include the required .003" to .005" taper blended into the gauge section, with no undercutting of the radius area, and with no hand blending required.



Where the finished specimen is too small to be held securely in a conventional two-sided template, a one-sided template is used. A sample which requires machining along its entire length is also prepared with a one-sided template. As with the more commonly used two-sided templates, any tapers are accurately blended into the template bars, eliminating the need for costly hand finishing.





Most projects can be completed using our standard master templates which are listed below.



Specification Gauge Size





ASTM E8 Tensile

.500” x 2”

ASTM E8 Subsized Tensile

.250” x 1”

ASTM E8 Subsized Tensile (Modified)

.250” x 2”

ASTM D638 Type I

.500” x 2”

ASTM D638 Type II

.250” x 2”

ASTM D638 Type III

.750” x 2.25”

ASTM D1622 Type S Tensile Impact

.125” x .500”R

ASTM D1622 Type L Tensile Impact

.125” x .375”

ASTM D790 Flexural

.500” wide x 4”-8” long

ASTM D790 Flexural

1.000” wide x 4”-8” long

ASTM D695 Compression

Gauge Section: .500”x1.5”

ASTM D695 Compression

To Square Ends: 3.13”

ASTM D412 Die C

.250” x 2.32”

ASTM D412 Die D

.125” x 1.31”



SPECIAL MASTER TEMPLATES



Should the standard master templates we have available not suit your exact requirements, special master templates can be designed to meet almost any testing specification, including ISO, JIS, DIN, BS and EN standards.



Test specimens can be prepared from strips varying in length from 2” to 24”, and width from ¼” to 6”. Gauge sections of the templates can be designed with or without blended tapers. A template can include drill bushings for precision alignment of holding pin holes for elevated temperature testing or for use with certain grips. Custom shapes have been designed for longitudinal testing of curved tube sections, while others have been built to machine specimens from welded sections.



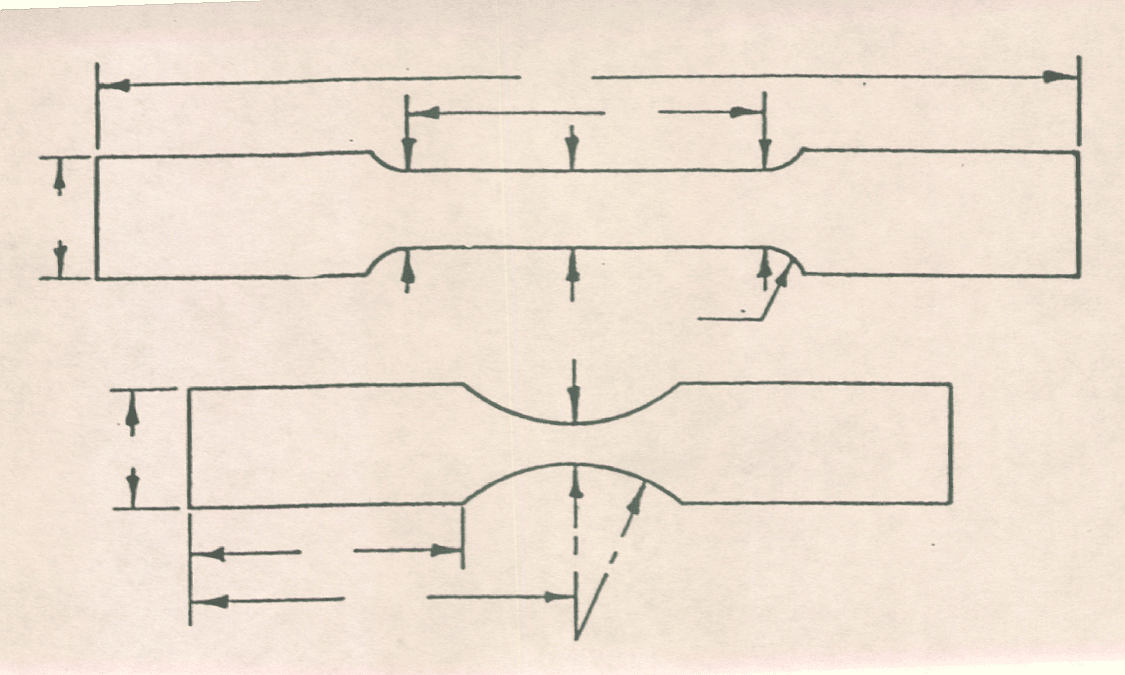

Should your testing program require special dimensions, or if your samples include one or more of the unusual conditions listed above, please forward a sketch of the completed specimen, including tolerances and desired taper, to our Engineering Department for a quotation. Basic sketches for tensile and tensile-impact specimens, indicating the required dimensions, are shown below. These can be copied, and used to create a sketch of the sample for quotation, if desired.
